Rooting a VMC2040 security camera part 3: Analyze the boot sequence
Brief
In this part we will go through the init script to see what (and how!) services are started during the boot.
The other parts of the series are:
Boot sequence

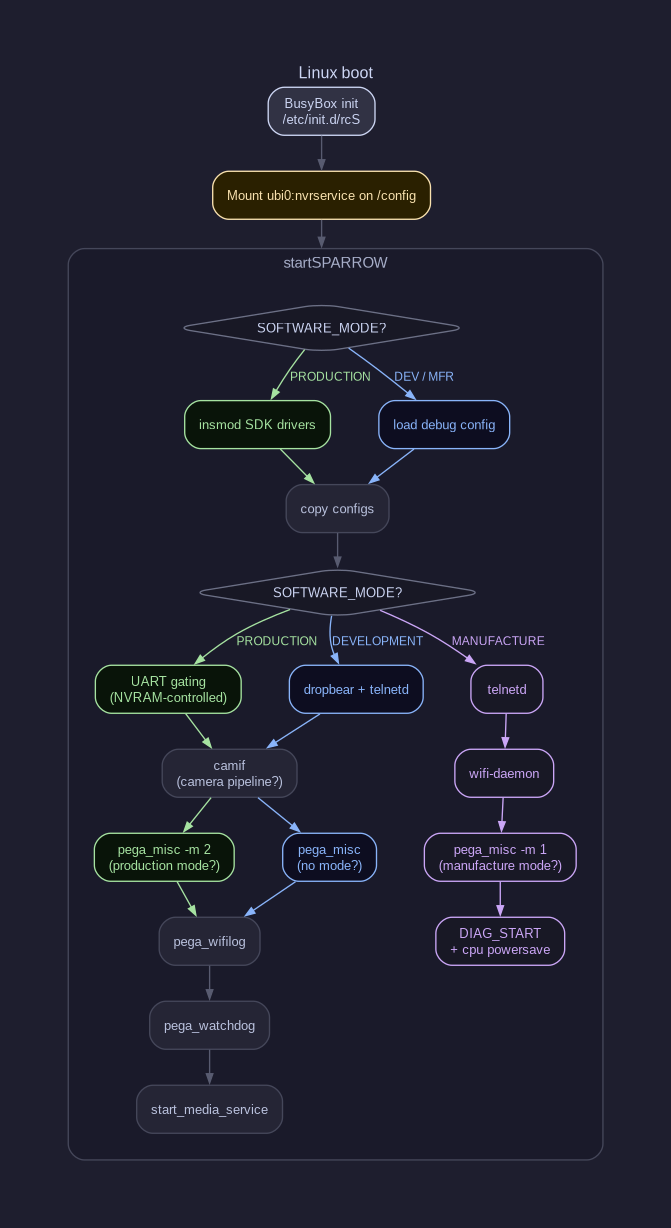

I've tried to summarize the boot sequence in the diagram below. Please be aware that the following descriptions is heavily simplified and only shows the logical flow. E.g. the snippets are not complete, a function could be implemented as a chain of calls and spread across multple files, etc. But the overall picture is somehow correct and should give you a good idea of how the system works.
The camera is using Busybox init as its init system. The init script /etc/init.d/rcS is quite simple. It basically set up a few mount points and then calls /etc/init.d/startDB which is a symlink to /etc/init.d/startSPARROW. This is the main init script that starts all the services on the camera.
The most important thing to take away from here is that:
- The script read etc/pega/software_mode to determine what to startup. For example, if it is set to "PRODUCTION", it writes some values to the hardware registers (UART registers as we will se later).
- The UBIFS volume is mounted to /config
1#!/bin/sh
2
3software_mode=`cat /etc/pega/software_mode`
4if [ "$software_mode" == "PRODUCTION" ]; then
5 riu_w 0x101e 0x56 0x0100
6 riu_w 0x101e 0x57 0x0004
7fi
8
9mount -a
10mkdir -p /dev/shm
11
12echo /sbin/mdev > /proc/sys/kernel/hotplug
13
14/sbin/mdev -s
15
16mount -t sysfs none /sys
17mount -t tmpfs mdev /dev
18mount -t debugfs none /sys/kernel/debug/
19mount -t ubifs ubi0:nvrservice /config
20
21mkdir -p /dev/pts
22mount -t devpts devpts /dev/pts
23
24mkdir -p /var/lock
25
26if [ "0" != "0" ]; then
27telnetd -l sh
28fi
29
30sh /etc/init.d/startDBSDK drivers
If software_mode is set to PRODUCTION, then it will load a bunch of kernel modules from /sdk/modules/:
1insmod /sdk/modules/4.9.84/grace.ko
2insmod /sdk/modules/4.9.84/lockd.ko
3insmod /sdk/modules/4.9.84/ms_notify.ko
4insmod /sdk/modules/4.9.84/mhal.ko
5insmod /sdk/modules/4.9.84/mi_common.ko
6insmod /sdk/modules/4.9.84/mi_sys.ko logBufSize=256
7insmod /sdk/modules/4.9.84/mi_sensor.ko
8insmod /sdk/modules/4.9.84/mi_rgn.ko
9insmod /sdk/modules/4.9.84/mi_ai.ko
10insmod /sdk/modules/4.9.84/mi_vpe.ko
11insmod /sdk/modules/4.9.84/mi_shadow.ko
12insmod /sdk/modules/4.9.84/mi_ao.ko
13insmod /sdk/modules/4.9.84/mi_vif.ko
14insmod /sdk/modules/4.9.84/mi_divp.ko
15insmod /sdk/modules/4.9.84/mi_venc.ko use_ring_ref=0
16insmod /sdk/modules/4.9.84/PS5250_MIPI.ko chmap=1Copy configs
It checks if /config contains all configuration files needed, if not, it copies the default ones from the read-only squashfs, e.g.:
1init_audio_config()
2{
3 if [ ! -e /config/pega/audio_ai.cfg ]; then
4 mkdir -p /config/pega
5 cp /etc/pega/audio_ai.cfg /config/pega/audio_ai.cfg
6 fi
7
8 if [ ! -e /config/pega/audio_ao.cfg ]; then
9 mkdir -p /config/pega
10 cp /etc/pega/audio_ao.cfg /config/pega/audio_ao.cfg
11 fi
12
13 if [ ! -e /config/pega/audio_aed.cfg ]; then
14 mkdir -p /config/pega
15 cp /etc/pega/audio_aed.cfg /config/pega/audio_aed.cfg
16 fi
17}But the most intrersting part is actually these:
1init_sdk()
2{
3 if [ ! -L /config/config_tool ]; then
4 rm -rf /config/config_tool
5 ln -s /sdk/config_tool /config/config_tool
6 fi
7
8 if [ ! -L /config/dump_config ]; then
9 rm -rf /config/dump_config
10 ln -s /sdk/config_tool /config/dump_config
11 fi
12
13 if [ ! -L /config/dump_mmap ]; then
14 rm -rf /config/dump_mmap
15 ln -s /sdk/config_tool /config/dump_mmap
16 fi
17
18 if [ ! -L /config/mmap.ini ]; then
19 rm -rf /config/mmap.ini
20 ln -s /sdk/mmap.ini /config/mmap.ini
21 fi
22
23 if [ ! -L /config/modules ]; then
24 rm -rf /config/modules
25 ln -s /sdk/modules /config/modules
26 fi
27
28 if [ ! -L /config/iqfile ] && [ ! -d /config/iqfile ]; then
29 rm -rf /config/iqfile
30 ln -s /sdk/iqfile /config/iqfile
31 fi
32}It creates symlinks to an executable (!) file on the read-only squashfs!
setup_config
Depending on which mode the camera is built for, it will start different services. E.g. in DEVELOPMENT it will start both SSH and telnetd:
1setup_config()
2{
3 chronyd || ntpd
4
5 enable_GPIO
6
7 if [ "$SOFTWARE_MODE" == "DEVELOPMENT" ]; then
8 echo "SOFTWARE_MODE=DEVELOPMENT"
9
10 #ethernet
11 #init_eth0
12
13 #ssh server
14 dropbear -p 22 -E
15
16 #telnetd turned on before PEGA is able to login the SSH
17 telnetd -l sh
18 fi
19
20 if [ "$SOFTWARE_MODE" == "PRODUCTION" ]; then
21 echo "SOFTWARE_MODE=PRODUCTION"
22
23 # setup UART according to the NVRAM
24 init_UART
25 fi
26
27 if [ "$SOFTWARE_MODE" == "MANUFACTURE" ]; then
28 echo "SOFTWARE_MODE=MANUFACTURE"
29
30 telnetd -l sh
31 fi
32
33 #NOTE sdo: earlier nvram_sync was not able to retrieve items from sku_printenv
34 # redo this fetch_kv call to get the items.
35 pegacmd fetch_kv
36}In PRODUCTION mode, it only initiate the UART. Lets take a look at that function as well:
1init_UART()
2{
3 enableRX=`nvram get pega_sys_en_uart_rx`
4 enableTX=`nvram get pega_sys_en_uart_tx`
5
6 if [ "$enableRX" == "1" ]; then
7 riu_w 0x101e 0x57 0x0000
8 fi
9
10 if [ "$enableTX" == "1" ]; then
11 riu_w 0x101e 0x56 0x0000
12 fi
13}nvram is actually a shell script that read and write values from the UBI volume:
1
2#!/bin/sh
3
4nvram_repo="/config/nvram"
5
6nvram_show () {
7 files="$(ls $nvram_repo)"
8 for f in $files; do
9 echo "$f=$(cat $nvram_repo/$f)"
10 done
11}
12
13nvram_get () {
14 if [ -f $nvram_repo/$1 ]; then
15 echo "$(cat $nvram_repo/$1)"
16 fi
17}
18
19nvram_set () {
20 check=$(echo $1 | grep "=")
21 if [ ! -z "$check" ]; then
22 i=$(echo $1 | cut -f1 -d"=")
23 v=$(echo "$1" | cut -f2- -d=)
24 echo "$v" > $nvram_repo/$i
25 fi
26}
27
28nvram_unset () {
29 if [ -f $nvram_repo/$1 ]; then
30 rm $nvram_repo/$1
31 fi
32}
33
34print_usage () {
35 echo "usage: nvram show"
36 echo " nvram get <item>"
37 echo " nvram set <item>=<value>"
38 echo " nvram unset <item>=<value>"
39}
40
41if [ -z "$1" ]; then
42 print_usage
43 exit
44fi
45
46case "$1" in
47 show) nvram_show
48 ;;
49 get|set|unset)
50 if [ -z "$2" ]; then
51 print_usage
52 else
53 nvram_$1 $2
54 fi
55 ;;
56 commit)
57 sync
58 ;;
59 ) echo "unknown argument $1"
60 print_usage
61 ;;
62esacIn other words, pega_sys_en_uart_rx and pega_sys_en_uart_tx are just nvram flags that control whether UART RX and TX are enabled. These flags are located in the writeable UBI config volume!
Also, riu_w 0x101e 0x56 and riu_w 0x101e 0x57 were the same registers that were written to earlier, probably to have the UART disabled by defaultl
The arlo_ssh flag
Inside the same init script there is another check:
System Message: WARNING/2 (<stdin>, line 101)
Cannot analyze code. Pygments package not found.
.. code-block:: bash
arlo_dbg=`nvram get arlo_ssh`
if [[ $arlo_dbg == 1 ]]; then
echo 1 > /proc/sys/net/ipv4/ip_forward
fi
Setting arlo_ssh=1 in the writable UBI nvram enables IP forwarding. I found no other reference to this flag, maybe it is only used in other products.
Summary
To summarize what we have learned in this part:
- The software mode depends on the content in /etc/pega/sofware_mode
- The nvrservice UBI volume is mounted very early, before any services are started
- A bunch of kernel moduels are loaded during initialization
- The init scripts checks if the nvrservice volume contains all the configuration files, if not, it copy default files from the read-only squashfs
- The init script creates symlinks to an executable file on the read-only squashfs, which is quite interresting
- SSH and telnetd are only started in DEVELOPMENT mode, while in PRODUCTION mode only the UART is initiated
- The UART lines are controlled by nvram flags, which are located in the writeable UBI config volume
In Part4, we will do a deeper analysis of the system and try to find some vulnerabilities.
